U.S.-Optimized Version | Full 360° X-ray Scannable | Carbon Fiber Tabletop

A premium electro-hydraulic fluoroscopy and interventional radiology table featuring a full carbon fiber tabletop, 360° X-ray transparency, high stability, and multi-axis motion. Designed for vascular, IR, cardiology, and surgical imaging environments. U.S.-compatible customization options available exclusively through Nova Vascular.

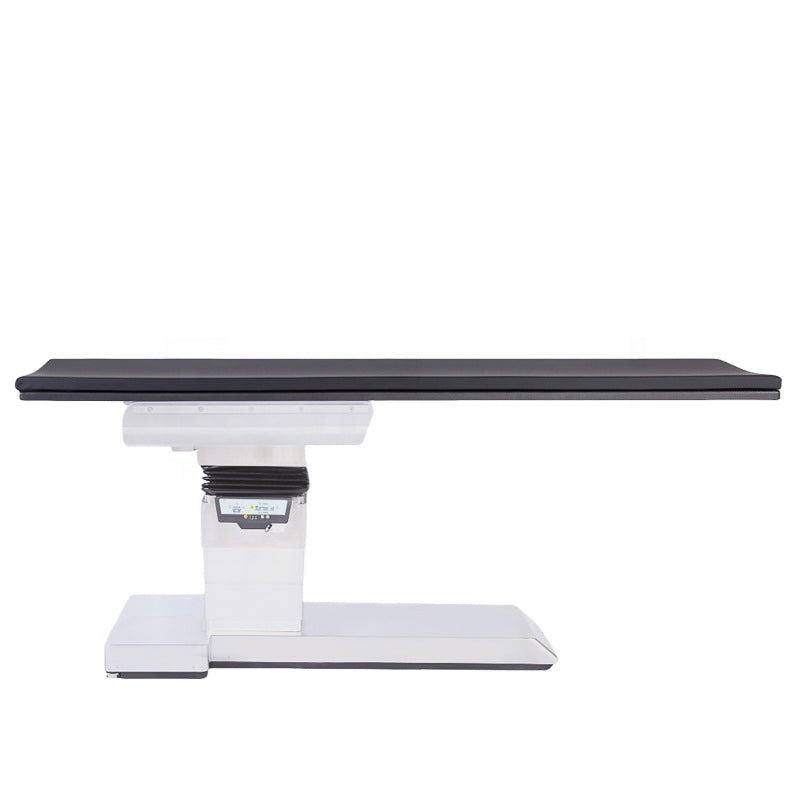

The Nova Vascular IRT-608SE is an advanced electro-hydraulic catheterization and fluoroscopy table engineered for high-volume interventional radiology (IR), vascular surgery, and minimally invasive procedures. Its carbon fiber tabletop provides exceptional imaging clarity, while the robust hydraulic system ensures smooth, precise multi-axis movement.

Nova Vascular offers the U.S.-optimized configuration of the IRT-608SE, including optional speed adjustments, lock-out timing customization, and workflow enhancements based on feedback from active U.S. surgeons.

Key Features

Full Carbon Fiber Tabletop

• 360° X-ray scannable

• Attenuation equivalent: ≤0.27 mmAl

• Ideal for C-arm, O-arm, mobile CT, and hybrid imaging

Electro-Hydraulic Multi-Axis Control

Controlled via joystick + button panel:

• Height adjustment

• Tabletop up/down

• Longitudinal sliding (≥ 320 mm)

• Transverse translation (≥ 200 mm)

• Left/right tilt: ≥ 20°

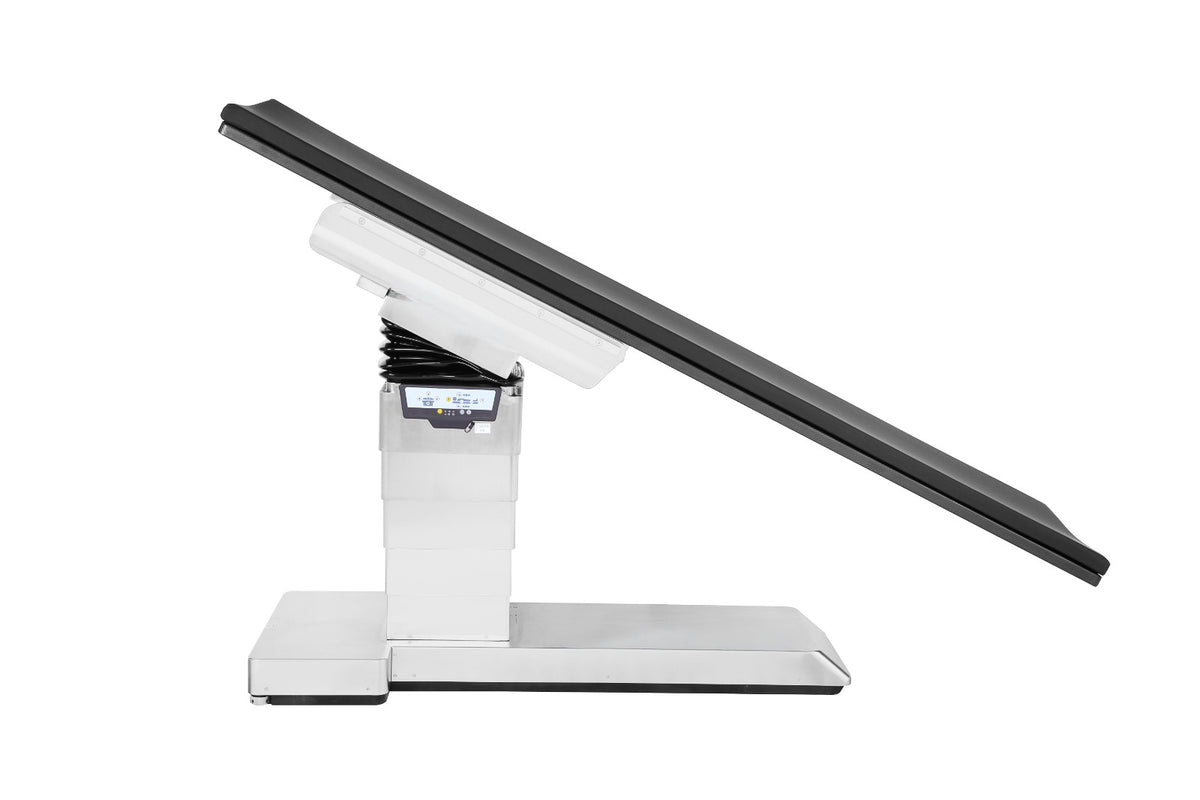

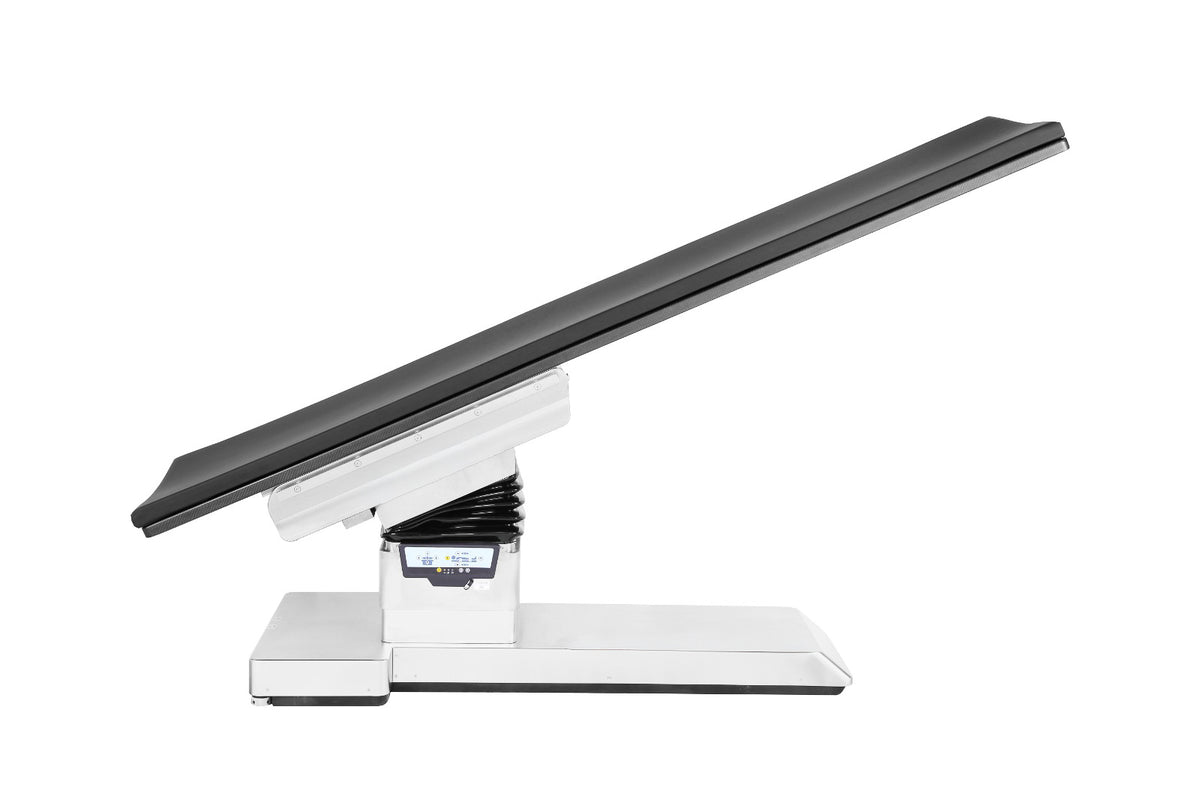

• Trendelenburg / Reverse Trendelenburg: ≥ 25°

Backup control panel located on the column.

Detachable Control Panel

It can be mounted on either side or used handheld for more comfortable positioning.

Quick-Release Tabletop

Detachable in under 10 seconds
(ideal for cleaning, transport, or swapping tops)

Built-In Battery

• Allows continuous movement up to 4 hours if AC power is offline

• Automatically recharges when plugged in

Ultra-Stable Stainless Steel Base

• 304 stainless steel frame, column, and base cover

• Extended T-shaped base for maximum stability during complex IR procedures

Ring-Free Imaging Zones

• Fluoroscopy range: 1760 mm

• Metal-free 360° scan range: 1340 mm

Optional Tabletops

• 2100 mm

• 2700 mm

Load Capacity

350 kg (772 lbs)
Designed for high-demand surgical environments.

Applications

• Interventional Radiology (IR)

• Vascular Procedures

• Catheterization

• Orthopedics

• ERCP

• Imaging / C-arm environments

• Urology

• ENT surgery

• Thoracic & Neurosurgery

• Mobile CT and O-arm imaging
